Spout bags form fill seal machine (HFFS)

  • Last update:2022-06-20
  • Page View:797

1. Instruction of machine:

spout doypack packaging machine can can complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery. It is suitable for filling different products such as powder, granule, tablets, liquid, cream and other non free-flowing liquid when equipped with feeding and measuring devices.


spout bag form fill seal machine


Specification 型号

FB-180S

FB-240S

FB-180SP/180SZ

FB-240SP/240SZ

FB-180SD

最小袋 Min.bag(w'l)

65 x 130mm

110x150mm

90x110mm

90x110mm

70x110mm

最大袋 Max.bag(w*l)

180?250mm

240x320mm

180x225mm

225x250mm

90x225mm

最大灌装量Max Filling

1000ml

2000ml

1000ml

2000ml

300ml

速度Speed(ppm)

<60

<60

<60

<60

60-120

膜厚度Film Thickness

60-180y

60-180q

60-180u

60-180q

60-180y

膜直径Max Reel Diameter

500mm

500mm

500mm

500mm

500mm

膜内径Inner Reel Diameter

70-80mm

70-80mm

70-80mm

70-80mm

70-80mm

尺寸Size( L*W*H)

6500x1200x1800

7200x1200x1800

6700x1200x1800

7500x1200x1800

6900x1200x1800

spout bag form fill seal machine

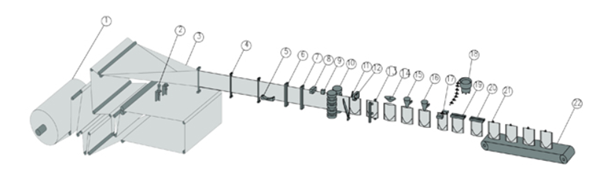

1 Film Unwind 2 Bottom Hole Punching 3 Bag Forming 4 Film Guide 5 Bottom Seal 6 Vertical Seal I 7 Vertical Seal II 8 Photocell 9 Servo Advance 10 Cutting 11 Pouch Catching I 12 Pouch Catching II 13 Slant Opening Cutting 14 First Pouch Opening 15 Vibrator 16 Spout Inserting 17 Spout Seal 18 Second Pouch Opening 19 Air Flushing 20 Filling I 21 Filling II 22 Pouch Stretching 23 Top Seal I 24 Top Seal II 25 Finished Product 26 Outlet


2. Applications of machine:
spout bag form fill seal machine in China
spout bag form fill seal machine in google
spout bag form fill seal machine made in china
spout bag form fill seal machine in Amazon
spout bag form fill seal machine factory
spout bag form fill seal machine manufacturer
Form Fill Seal Equipment & Form Fill Seal Packaging
Spout pouch forming filling and sealing machine
seal and packing machine,form fill seal and packing machine
Manufacturer of pouch packaging machines and packaging machine
Horizontal Form Fill Seal Spout Pouch Packaging Machine
Customize Horizontal Form Fill Seal Machine
Spouted Pouch Packaging and Standup Pouches
How do Automatic Pouch Filling and Sealing Machines Work
spout bag form fill seal machine

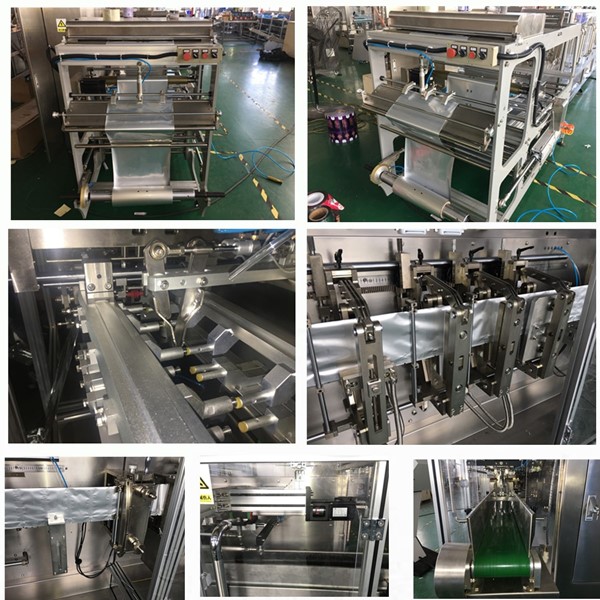

3. Details constructions of machine:

 spout bag form fill seal machine

spout bag form fill seal machine

spout bag form fill seal machine


4. Features of machines:
 It can be used packing powder, liquid, paste, liquid, paste, solid product in the industries of food, medicine, daily chemical, etc.

PLC Control, English and man-machine interface, operating easy and sample maintain.

Advanced photoelectric season tracking system and servo motor pull for precise bag width and position film.

Easy and fast adjustment of change over, the machine has strength extensibility, could fill two or more products into one bag by add filling device.

Smooth performance and low noise, prefect package appearance, sensible safety device and no pollution during production to get production friendly working environment.
