Scope of application

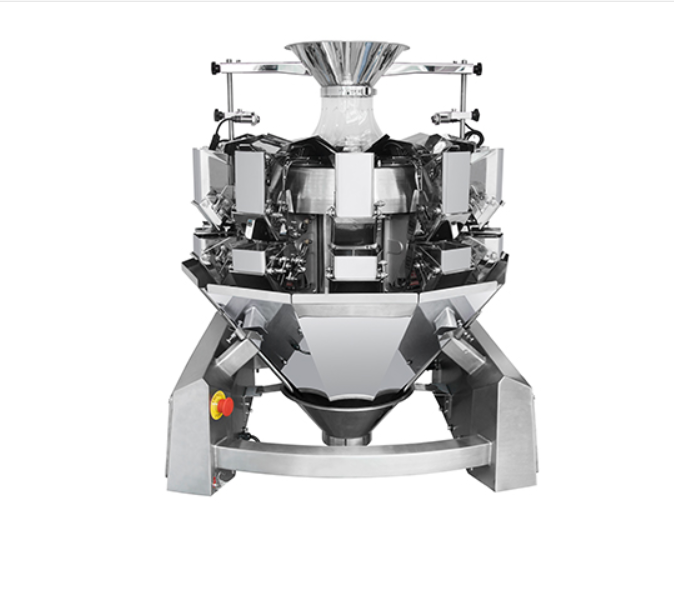

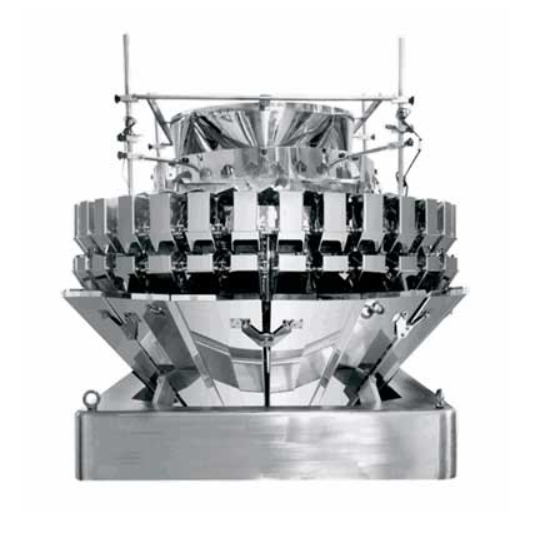

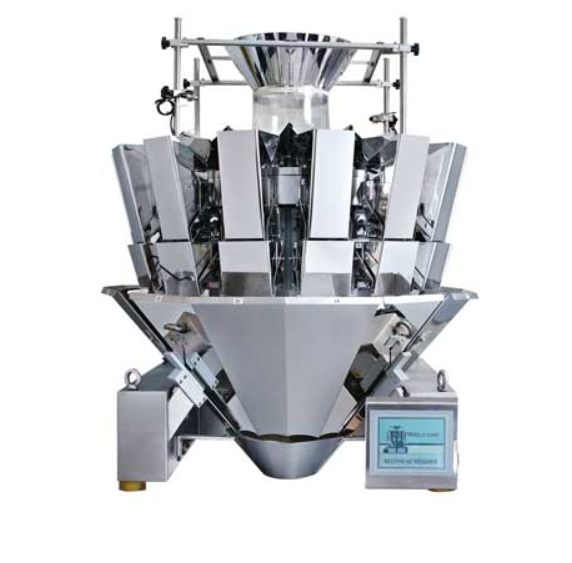

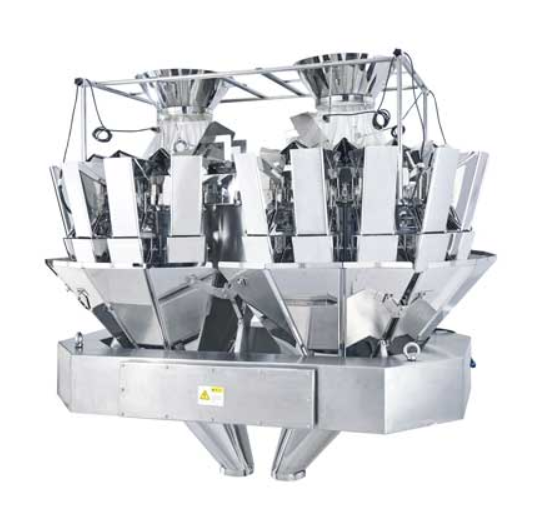

10 14 16 20 24 heads weighting scales

suit for most of granules products, such as chips, tea, grains, frozen foods,metal fittings, nuts, etc.

Features & Mechanical Character :

10 14 16 20 24 heads weighting scales

Features:

1. High-precision, high-standard special load cell,resolution up to 2 decimal places.

2. Program recovery function can reduce operation failures, Support multi-segment weight calibration.

3. No products auto pause function can improve weighing stability and accuracy.

4. 100 programs capacity can meet various weighing requirement,user-friendly help menu in touch screen contributes to easy operation.

5. Linear amplitude can be adjusted independently,can make the feeding more uniform.

6. 15 languages available for global markets.

Mechanical Character:

1. Equipped with both weighing and counting softwares.

2. Vibration time is automatically adjusted to make sure a good feeding process and improve the combination possibility.

3. Extra MCU helps the motherboard CPU to judge and control the feeding process, effectively improve the weighing accuracy.

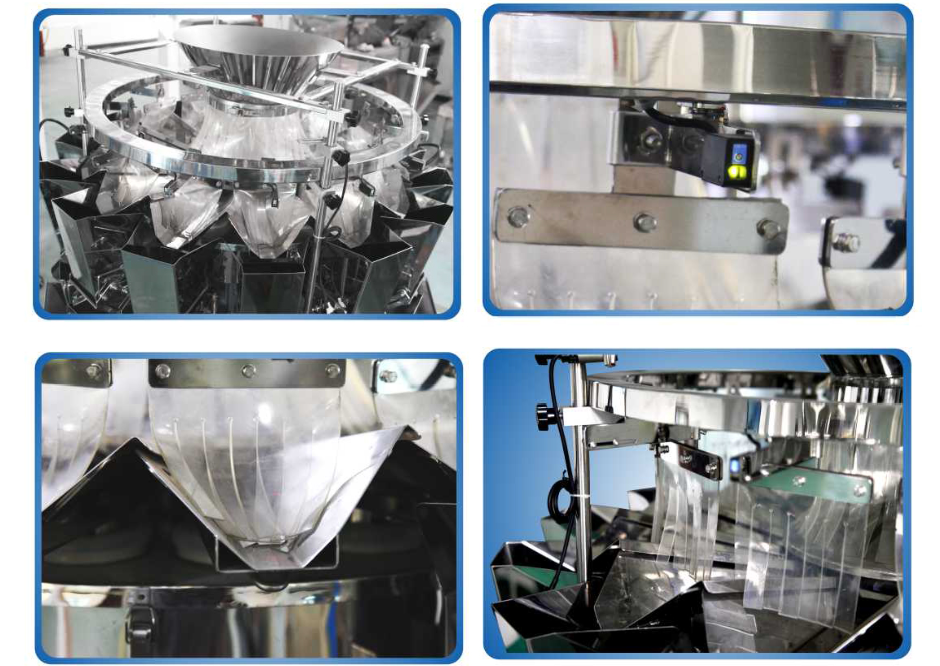

4. Wide V shape feeder pan with an independent photo sensor on its top, feeding process can be more uniform.

5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing;

6. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.

Technical Specification :

TECHNICAL SPECIFICATION
Model	FBS-A10	FBS--A14	FBS--A20
Weighing Range	10-2000g (Can multi-drop)
Max Weigh Speed	65 Bags/Min	120bags/min	130bags/min
Accuracy	±0.1-L5g
Hopper Vbhime(L)	0.5L/1.6L/2.5L/5L
Driver Method	Stepper Motor
Option	Timing Hopper/ Dinrple Hopper/ Printer/Overweight Identifier / Rotary Top Cone
Intaface	7"HMI/10"HMI
Power Parameter	220V/50/60HZ 1000W	220V/50/60HZ 1500W	220V/50/60HZ 2000W
Package Size(mm)	1650(L)X1120(W)X115 0(H)	1750(L)X1200(W)X124 0(H)	1650(L)X1650(W)X150 0(H) 1460(L)X650(W)X1250 (H)
Total Weight(Kg)	400	490	880
