PRODUCT

Metal inspection machine

  • Last update:2022-07-05
  • Page View:4319

Scope of application

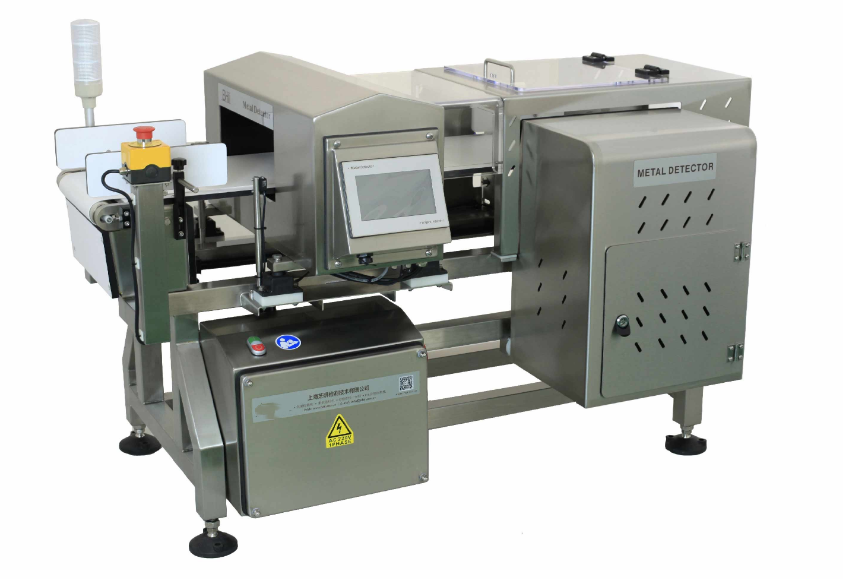

metal detector

sample packages

AMR type belt metal detector can be used in food, pharmaceutical, plastic, chemical, textile, garment, toy paper-making, hygienic products, electronics, renewable resources industry etc, applying to detect broken needles, iron wires, metals (such as Ferrous; Copper; Brass; Aluminum; Stannum; Stainless steel etc.) that mixed with products, raw materials. Using metal detector can help relative corporations pass HACCP,GMP, QS, ISO9001 certificate.

Features & Mechanical Character :

1. Hard filling technology handpiece, with first-class stability, the basis for long life of handpiece
2. Intelligent learning function, automatically set parameters, easy to operate
3. X-R orthogonal decomposition and multiple filtering algorithms, better anti-interference
4. Phase intelligent tracking technology, better stability
5. Anti-interference photoelectric isolation driver, remote installation of operation panel
6. DDS all-digital and digital signal processing technology improves detection accuracy
7. American FRAM ferroelectric memory, lossless storage of 100 product parameters
8. High quality stainless steel 304 frame and roller assembly, strong and durable.

9. Can detect various metal materials such as iron, stainless steel, copper, aluminum and lead

metal detactor sclae factory

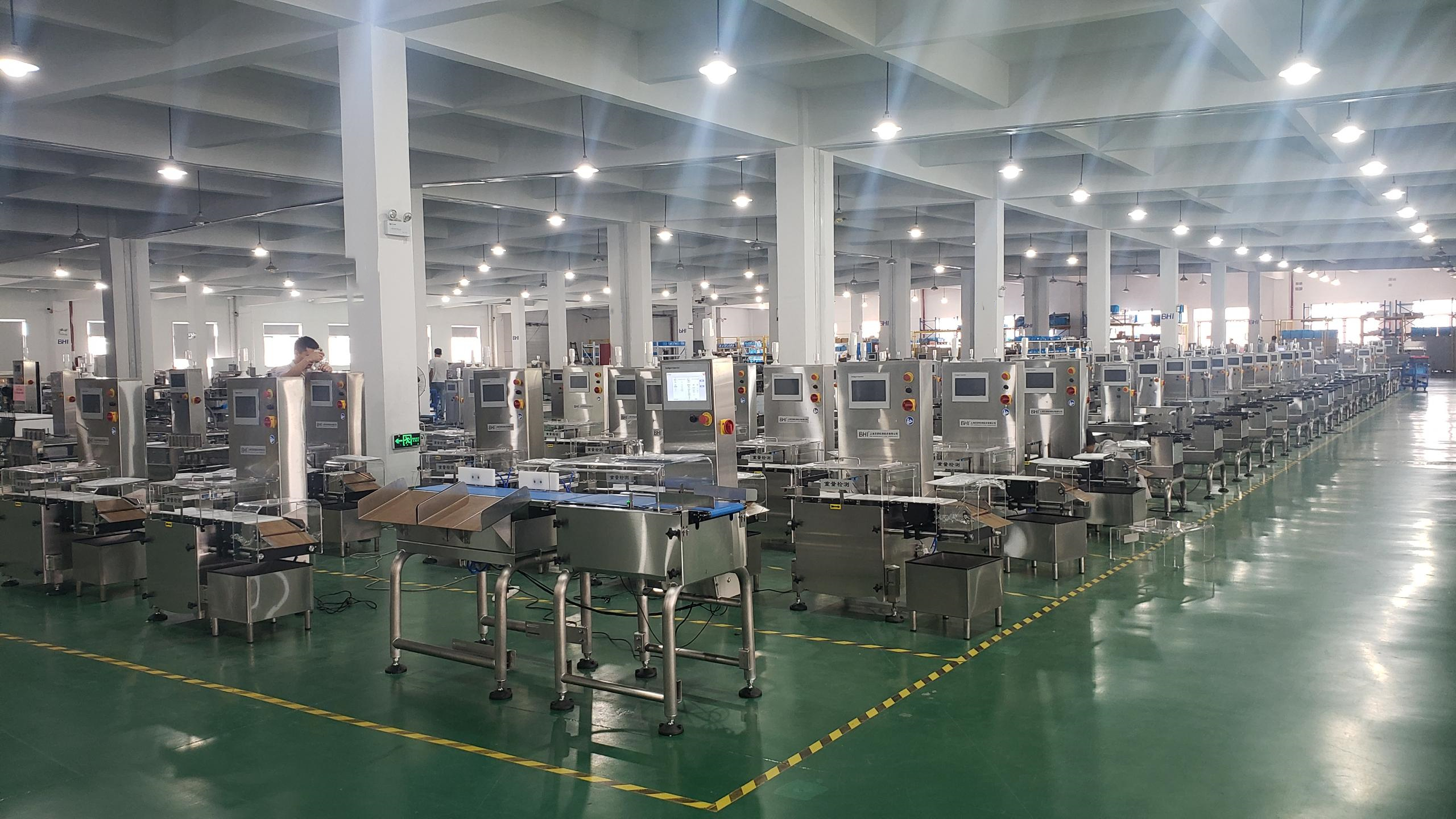

on line checkweigher

Technical Specification :

Index

Description

Specifications

1

Major Material

Stainless Steel

2

Detecting Frame W*H (mm)

250*70Height Adjustable

4

Best Sensitivity (mm)

Fe≥1.0, SUS304≥2.0square test ball

When the height is 50mm

5

Level Setting

Auto set

6

Width of Conveying Belt (mm)

250

7

Length of Conveying Belt (mm)

1000

8

Working Height (mm)

720~850

9

Throughput Direction

Face to Control Panel, From Left to Right

10

Max. Conveying Speed (m/min)

40

11

Max. Weight on Belt(kg)

5

12

Alarm Mode

Aural and visual

13

Rejection Mode

Optional

14

Power

AC 220V 1 Phase, 200W

15

Working Environment

Free of high power frequency converter, obvious vibration and dynamic metal objects
