caton box open seal machine

  • Last update:2022-03-13
  • Page View:491

Scope of application

carton box form seal machine

INSTRUCTIONS:

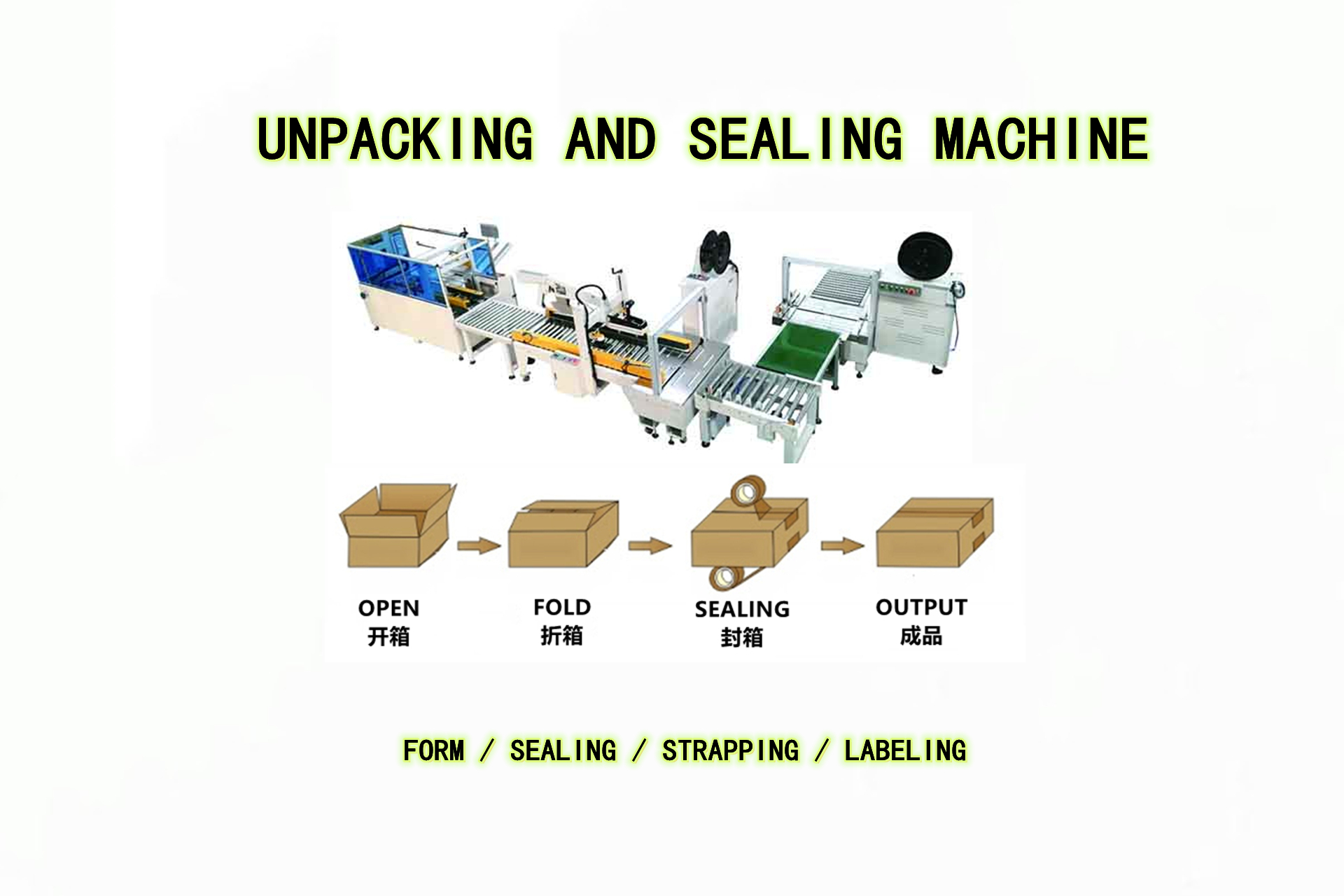

It is applicable for the erect carton cases. Include the carton open, bottom folding, bottom sealing ,strapping ,

labeling processes etc.
机械介绍:
机械主要功能如:开箱,折箱,底封,顶封,侧封,捆扎,贴标等功能

Features & Mechanical Character :

Fully automatic carton case erector is working on unformed carton boxes that will automatic

forming,folding and sealing for carton boxes.then it will be sealing by adhesive tape at carton

boxes bottom.the carton case machine has adopted Siemens touch and Siemens PLC as control

system so that the operator easy to operation it and modify program in future.the carton case

machine not only can independent work but also can combined with packing line together.


Technical Specification :

Model:机械型号

FBX-15

FBX-10

Speed:速度

8~15cartons/min /

8~10cartons/min/

Carton Storage Quantity:

纸箱架

60~80pcs

60~80pcs

Application Carton Size:

开箱尺寸

L:250-650*W:150-500*H150-500mm

L:200-450*W:150-400*H120-350mm

Power:功率

500W

200W

Voltage:电压

220V/380V,3Phase, 50Hz/60Hz

Air Consumption:

空气消耗

250NL/min

150NL/min

Air Pressure:工作气压

5-6kg/cm2

Machine Weight:

机械重量

About 450KG

About 350KG

Machine Dimension:

机械尺寸

L2400*W1900*H1550mm

L2160*W1900*H1492mm

Applicable Tape Size:

封箱胶带宽度

48/60/72mm
