FBV-50Y irregular shape sachet packing machine

  • Last update:2021-11-02
  • Page View:16685

Scope of application

FBV-50Y irregular shaped bag sachet packing machine , could be used to pack liquid, cream , sticky product such as cosmetic, syrup , honey, drinks ,chemical products and so on

The working unit is from bag forming , dosing , filling , sealing to cutting with eye marking foundation and date or batch No. Letter coding

 Applicable packing film:

Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.


irregular shape sachet form fill seal machine

Features & Mechanical Character :

Features:

* PLC and touching screen is from Omron to ensure the machine control stable .

* Schneider servo motor to control the sachet pushing ,bag forming accuracy could be assured .
* Panasonic eye marking checking sensor to guide the forming and sealing in the correction position.
* Temperature control and reply to be used the same brand Omron as PLC to ensure machine working synchronous.

* All connect with product parts is made of stainless steel 304,(could be selected for 316 depend on customer requirements ,

but ss 316 cost will be higher than ss304).

*The liquid packaging , the cylinder is from Taiwan AirTack, it’s the best choice in domestic for liquid packaging .

* The machine is fit for GMP and CE standard.

Applications:

This shaped bag sachet packing machine , could be used to pack liquid, cream , sticky product such as cosmetic, syrup , honey, drinks ,chemical products and so on .

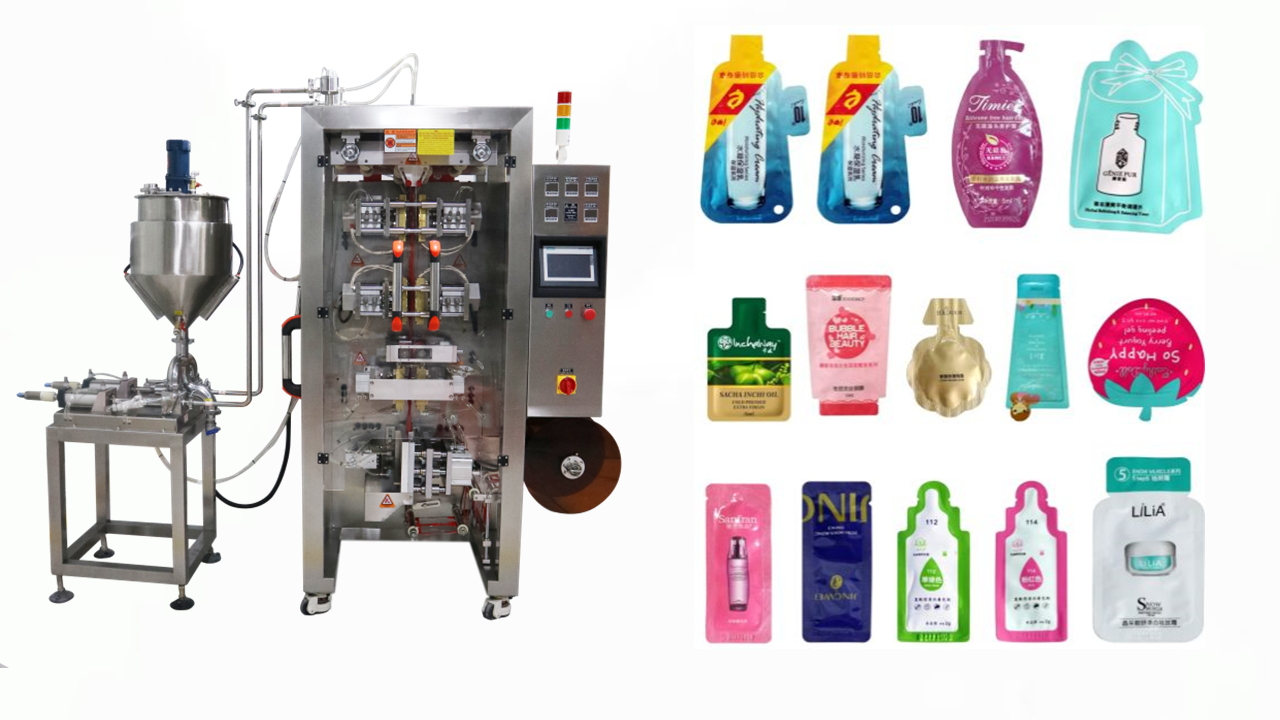

FBV-50Y irregular shape sachet packing machine

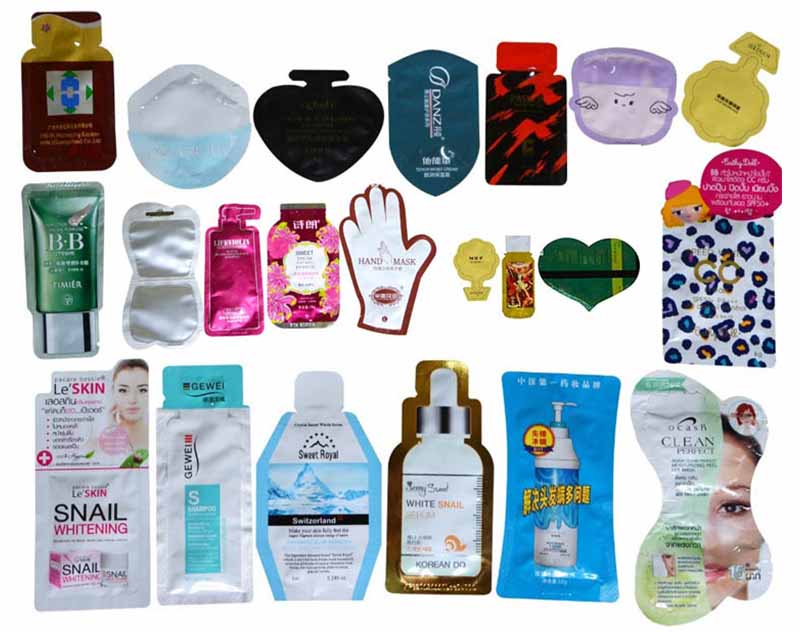

irregular shape sachet form fill seal machine application

Technical Specification :

type

FBV-50Y

FBV-50YD

Machine speed

25-30 per minute

50-60 per minute

Volume to fill

(1 -50 mls can be customized)

(1 -50 mls can be customized)

Pouch size range

Customized ( Max width: 160 mm,  Maz length: 160 mm)

Customized ( Max width: 80 mm,  Maz length: 160 mm)

Max. film width

400mm

400mm

Film Material

Composite film/aluminum foil/paper-PE film/laminated paper

Bag type

Irregular Shape Pouch

Voltage

AC220V/50HZ Single-phase ( customized)

Total Power

3KW

4.4 Kw

Control system

Omron PLC Control System

Touch screen

Two kinds of language(Customer’s Language and English)

Machine material

Stainless Steel 304(SS304)

Machine Size

(L)1150mm*(W)1250mm*(H)2150mm

(L)1350mm*(W)1450mm*(H)2150mm

N.W.

450kg

 600 kgs

Function

Weight---Fill---Make Pouch(4-side seal)---Print date --Make shape---Cut off---Cut Easy-Tearing Open Notch---Count production capacity automatically
