Bath water pasteurizer | sachet sterilizing process line

  • Last update:2022-06-13
  • Page View:3438

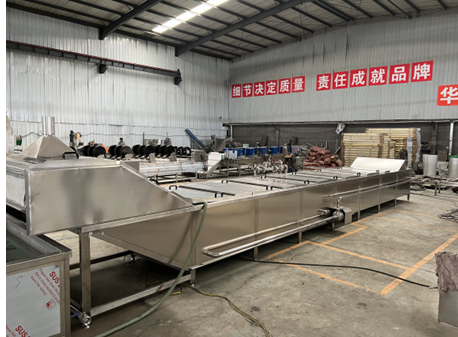

bathing water pasteurization

pasteurizer

Machine introduction
The Working principle is using pasteurization, for all kinds of packaging products, such as vegetables, or canned food through adjust temperature automatically, control the temperature of sterilizing tank between 80℃-90℃, through "high temperature water sterilization”, then enter into the cooling tank  by another conveyor belt to cool uniformly, so as to achieve the required sterilization, it can play a sterilization effect, and can ensure the protein and other nutrients are maintained, extend the shelf life without preservatives and additives, so as to protect the people's health.

BATH WATER PASTEURIZATION

BATH WATER PASTEURIZATION

Technical parameters:

Equipment dimensions: 10000*1350*1450mm
Effective width of mesh belt: 800mm
Power supply: 380V /50Hz
Pasteurization capacity 3Tons
Power: 3.1kw
Sterilization time: adjustable
Sterilization temperature: 50℃-99℃ adjustable
Operating speed: stepless speed regulation
Heating method: steam heating, coil pipe at the bottom

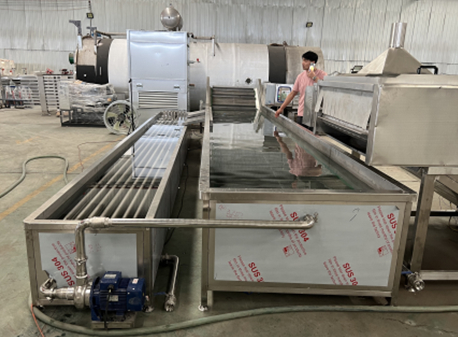

BATH WATER COOLING MACHINE

BATH WATER COOING MACHINE

Technical parameters:
Dimensions: 8000*1850*1450mm Mesh belt width: 800mm
Power supply: 380V 50Hz Speed regulation method: frequency conversion speed regulation Discharge method: automatic discharge Cooling method: compressor unit coil cooling
Compressor: Lai Fukang high-temperature piston machine Compressor number: 30P
Mesh belt: stainless steel mesh belt

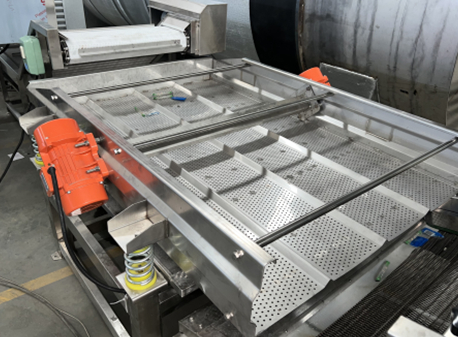

DE-WATER MACHINE

VIBRATE DE-WATER MACHINE

technical parameter:
Equipment size: 1800*1400*1850 Screen surface material: SUS304 stainless steel punching
Screen width: 1000mm Power: 0.5kw
Power requirement: 380V/50HZ/three-phase four-wire system. Discharging method: automatic discharging

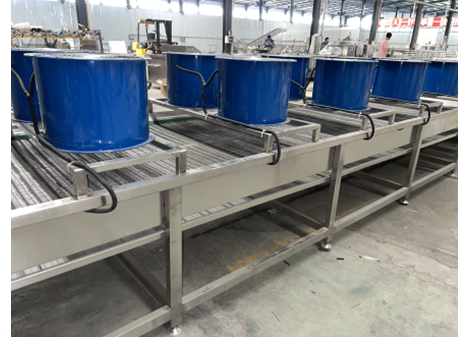

BLOWING AIR DRYER

BLOWING DRYER

technical parameter:
Equipment dimensions: 6000*1350*1450mm
Effective width of mesh belt: 800mm
Power supply: 380V /50Hz
Centrifugal fan power: 0.75*10=7.5kw
Transmission power: 0.75kw
Operating speed: stepless speed regulation

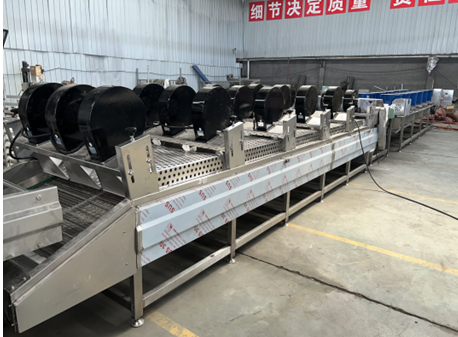

BLOWING AIR DRYER

BLOWING DRYER MACHINE

technical parameter:
Equipment dimensions: 6000*1350*1450mm
Effective width of mesh belt: 800mm
Power supply: 380V /50Hz
Centrifugal fan power: 0.75*10=7.5kw
Transmission power: 0.75kw
Operating speed: stepless speed regulation

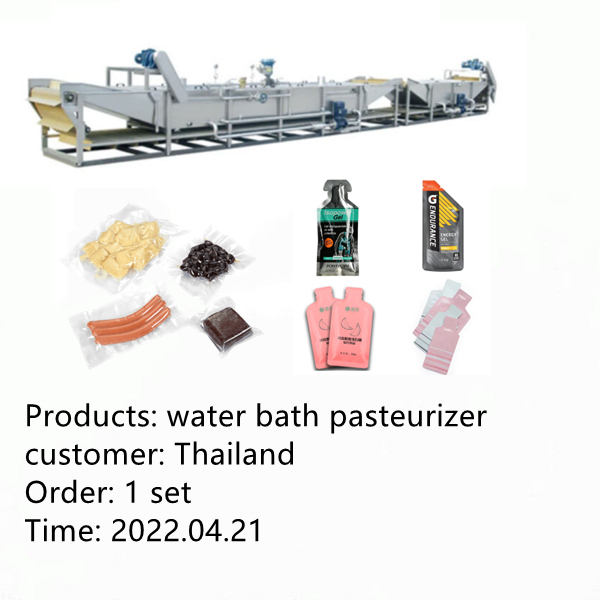

Water bath pasteurizer is widely used in pasteurizing fruit and vegetable sauce or jam, juice and dairy products in flexible pouch, tin cans or bottles

jelly sachets

Sterilization time

10-40min

Steam pressure

1-4kg

Cooling model

Cold water with refrigerator

Regular belt width

500-1200mm

Air consumption

0.5-1.0m3/h

Sterilization temperature

65°C-95°C(adjustable)

Processing capacity

Be designed according to customers requirements

Running speed

frequency speed regulation

Power

Normal temperature:3KW

Ice water:22KW

Power supply

3800V(or customized)
