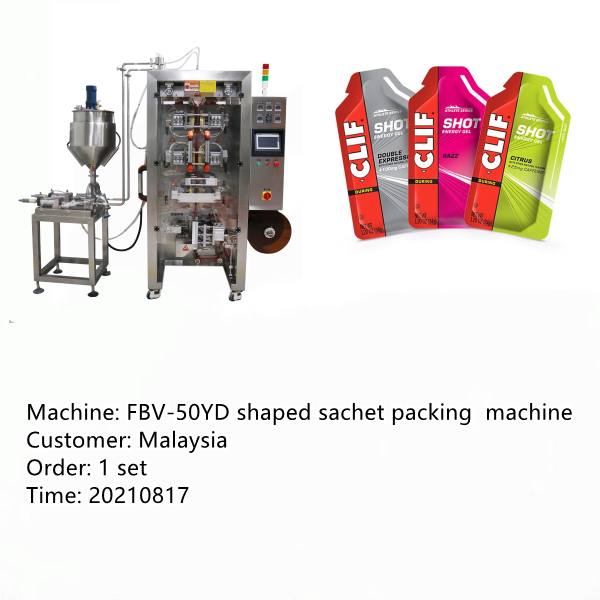

VFFS irregular shape sachet form fill seal machine FBV-50YD

  • Last update:2023-02-02
  • Page View:68328

Automatic special-shaped sachet liquid filling and sealing machine
Weight---Fill---Make Pouch(4-side seal)---Print date --Make shape---Cut off---Cut Easy-Tearing Open Notch---Count production capacity automatically

Employer:
Automatic measurement of volume, bag making, filling,
Sealing, cutting, cutting gaps that are easy to tear, etc.

Feature:
PLC control, touch screen English operation.
PID temperature control.
Power supply: According to the requirements of customers in various countries.
Each machine has a CE certificate.

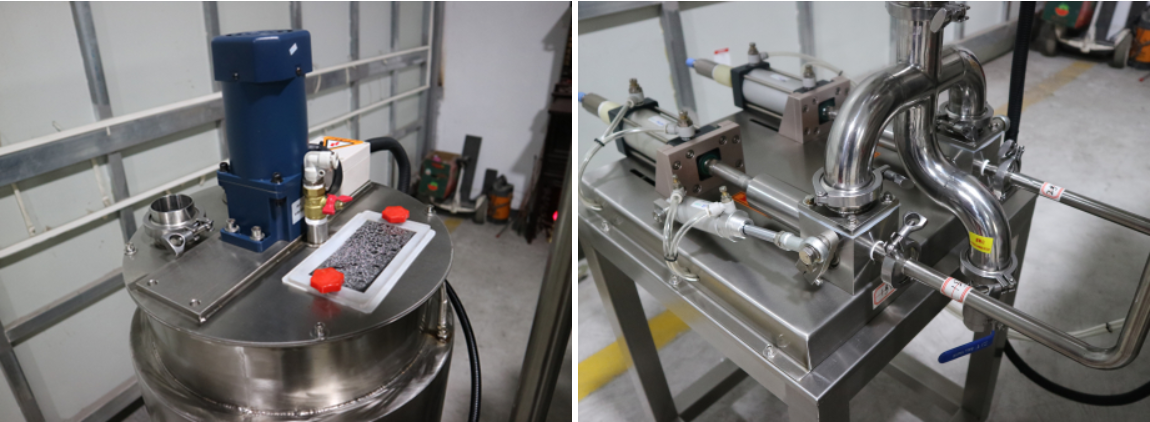

tank and filler of packaging machine

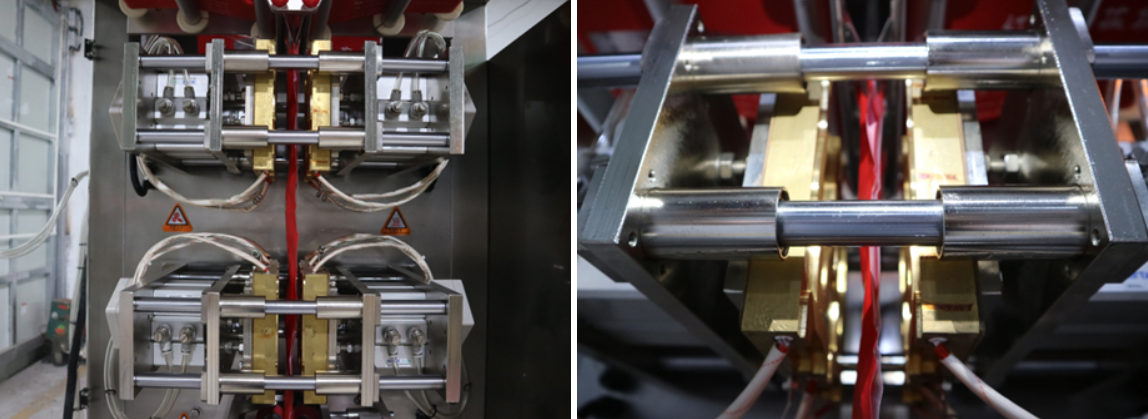

sealing moulds of packing machine

Application:
This machine is suitable for the packaging of medicine, cosmetics, food, chemical products, such as olive oil syrup/seasoning/ketchup/honey/oral liquid/essential oil/eye cream/fertilizer and pesticide, etc.


Bag/film material:
Paper/Polyethylene Cellophane/Polyethylene; Aluminized/Polyethylene/Polyethylene Nylon/Polyethylene/BOPP


type

FBV-50Y

FBV-50YD

Machine speed

25-30 per minute

50-60 per minute

Volume to fill

(1 -50 mls can be customized)

(1 -50 mls can be customized)

Pouch size range

Customized ( Max width: 160 mm,  Maz length: 160 mm)

Customized ( Max width: 80 mm,  Maz length: 160 mm)

Max. film width

400mm

400mm

Film Material

Composite film/aluminum foil/paper-PE film/laminated paper

Bag type

Irregular Shape Pouch

Voltage

AC220V/50HZ Single-phase ( customized)

Total Power

3KW

4.4 Kw

Control system

Omron PLC Control System

Touch screen

Two kinds of language(Customer’s Language and English)

Machine material

Stainless Steel 304(SS304)

Machine Size

(L)1150mm*(W)1250mm*(H)2150mm

(L)1350mm*(W)1450mm*(H)2150mm

N.W.

450kg

 600 kgs

Function

Weight---Fill---Make Pouch(4-side seal)---Print date --Make shape---Cut off---Cut Easy-Tearing Open Notch---Count production capacity automatically
