customer:America

products: chocolate process line

Deal time: 20201014

order: 1 set

Deisgn:

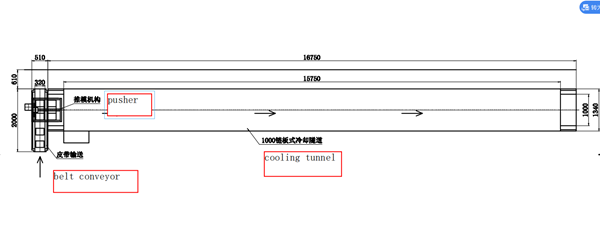

Width of conveyor belt:1000MM,

Cooling tunnel total Length:16.75M, cooling area 15.75M

made of SUS304 stainless steel.

Consisting 3 refrigeration systems(5HP/set).

Belt: PU belt 1.2mm, with belt pneumatic alignment device

Belt speed 0.7~1.2 M/min1000

Motor SEW

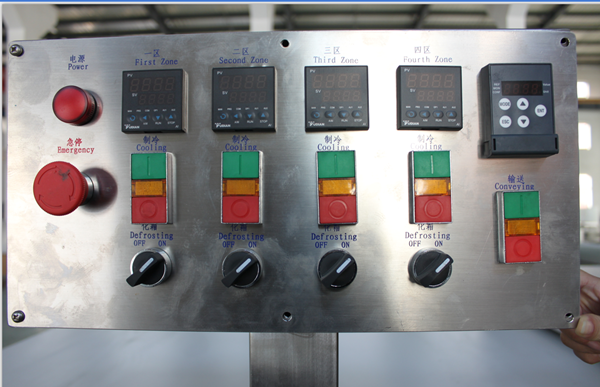

Electrics: schneider/omron

Cooling units : Copeland R404

Tray in the cooling tunnel and can take out

208V/60Hz/3phase

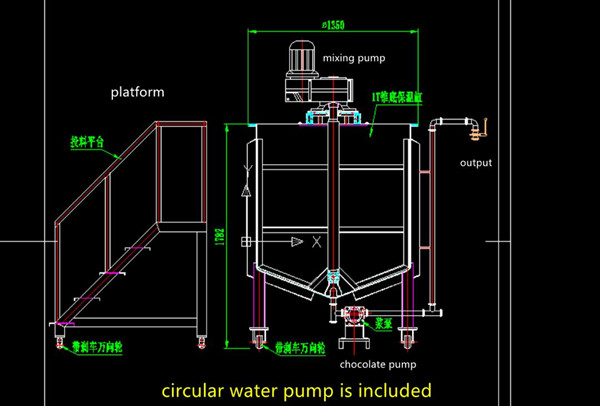

chocolate mixing tank:

Volume 1000L

With wheels

Inside SS304+outside SS304

Stirrer with scraper(walls and bottom)

Conical bottom

A Chocolate Pump underneath

A moveable stairs besides the tank

Safe net on top of input

Heat water pump circle in Jacket and output pipe ( not included in price)

208V/60Hz/3phase

Customer visit facoty:

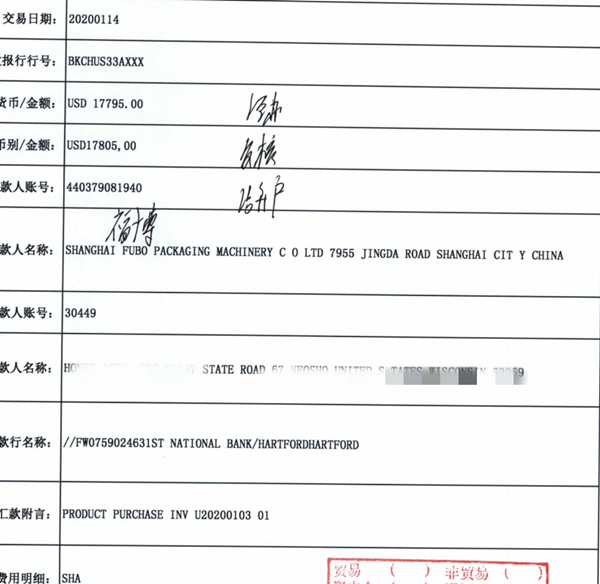

payment:

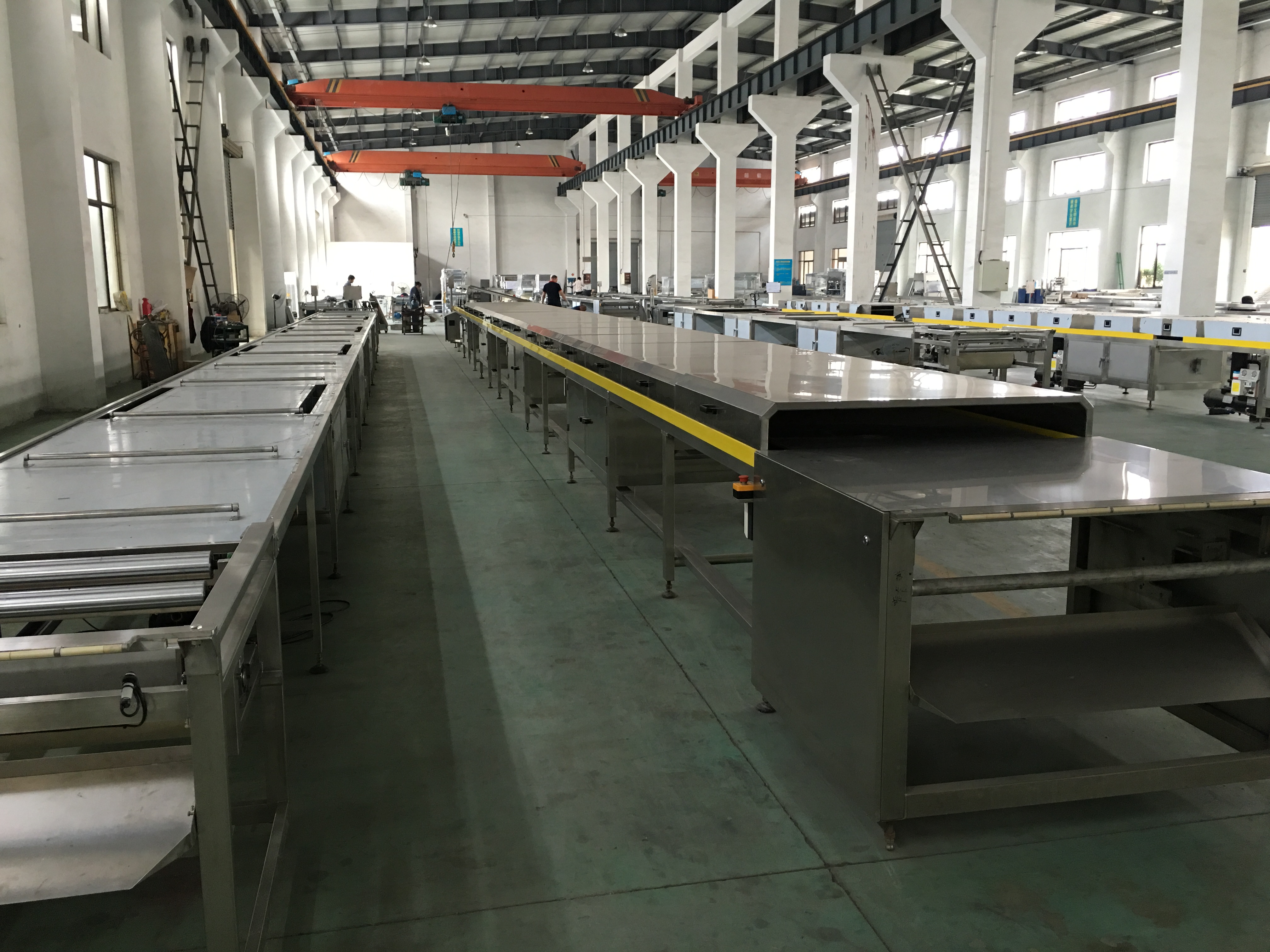

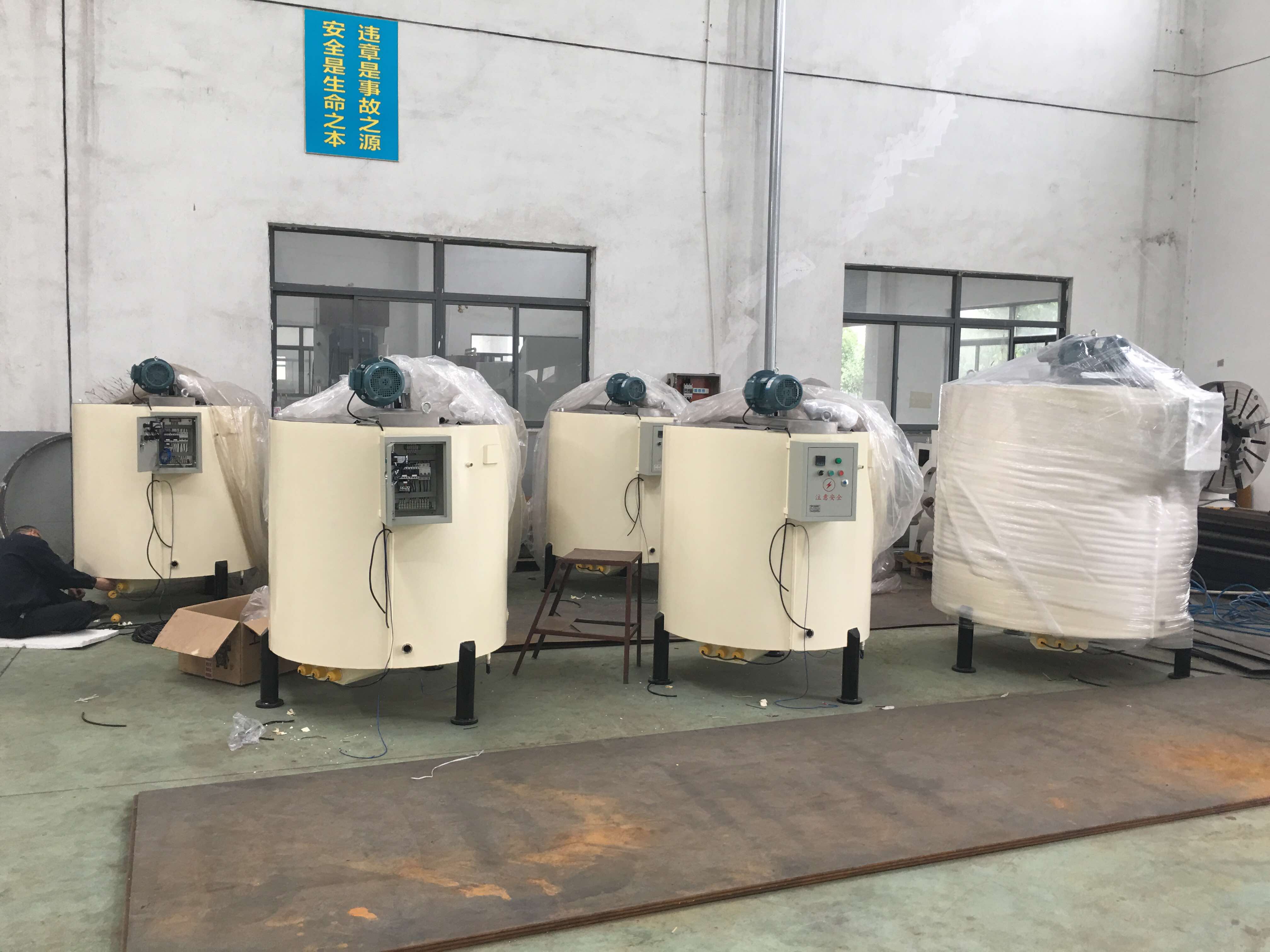

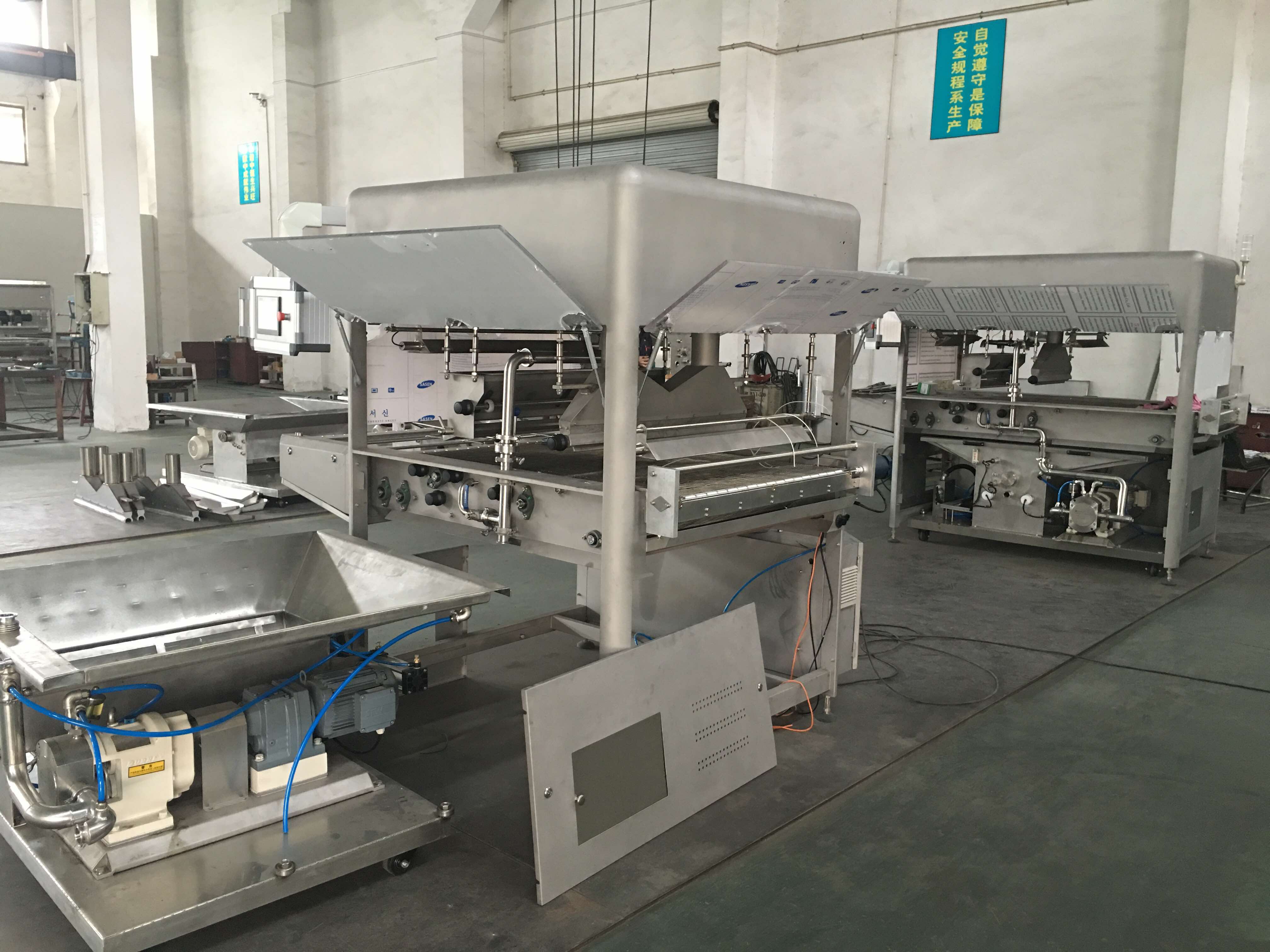

factory pictures:
