order: premade coffee pouch filling sealing machine

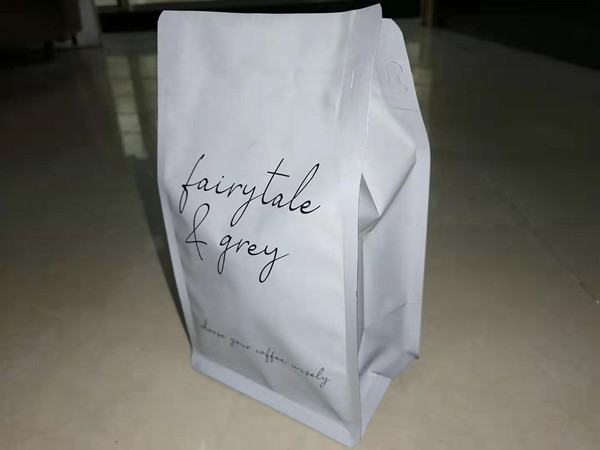

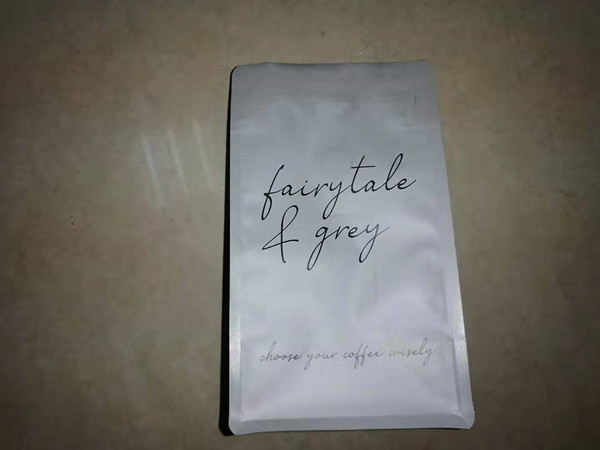

Sample pouch from Customer:

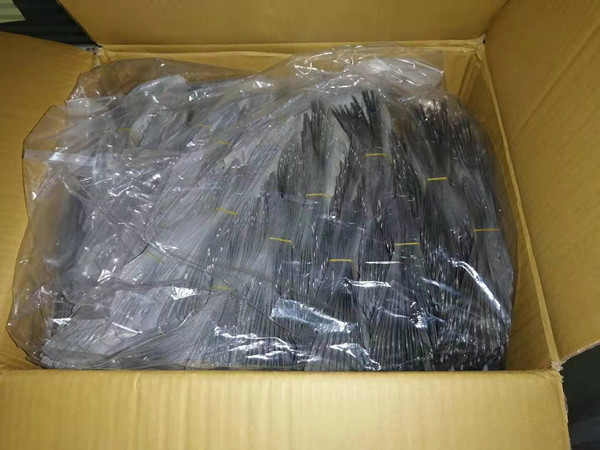

samples pouches for test machine:

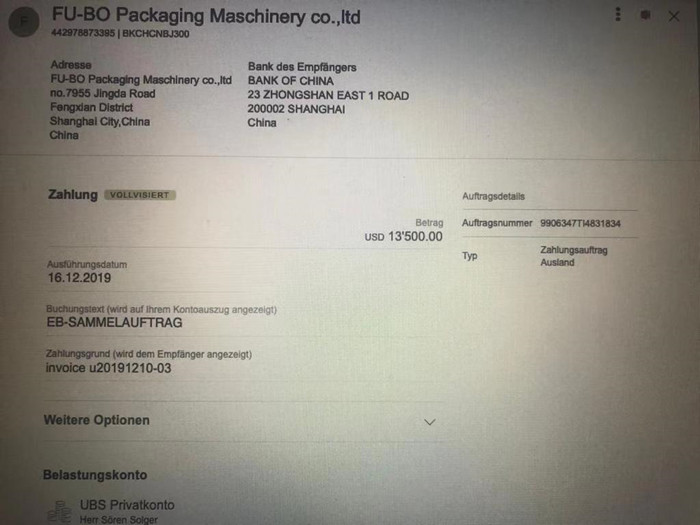

Payment:
Instructions of machine:

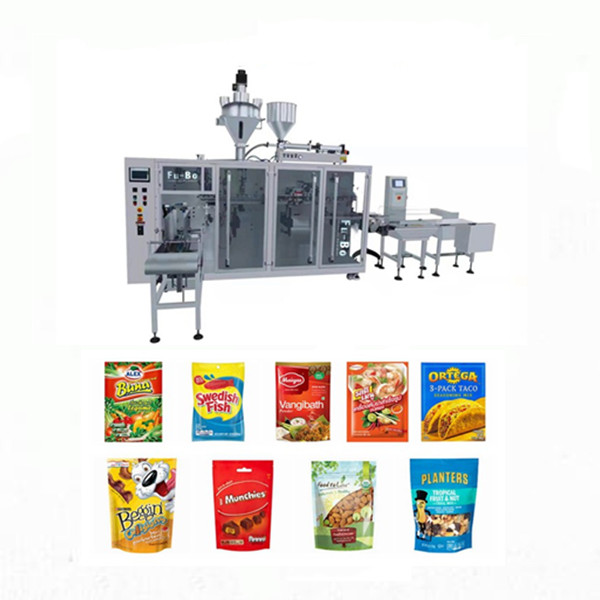

Horizontal pre-made pouch automatic packing machines series produced by our company adopted international advanced technology and derives from European classical packing machine. With blend of current packing technology, reasonable design and stable running, it is able to pack various sizes of stand-up and flat pouches. Equipped with flexible processing unit, it can automatically filling, sealing and do other packing processes. Premade pouch packing series is the most optimum choice to realize economic and reasonable packing.
1.Premade Pouch Stack 2.Flip-Out Pouch-Picking Unit 3.Zipper Opening 4.Pouch Opening 5.Air Flushing 6.First Filling 7.Second Filling 8.Pouch Stretching 9.Top Seal I 10.Top Seal II 11.Finished Product 12.Outlet
|
Type型号 |
FBG-180 |
FBG-210 |
FBG-240 |
FBG-330 |
|
Packing range袋型尺寸范围 |
60X80mm & 180X310mm |
90X110mm & 210X310mm |
100X120mm & 240X320mm |
140X180mm & 320X410mm |
|
Max volume包装容量范围 |
1200mL |
1600mL |
2000mL |
4000mL |
|
Speed包装速度 |
30-60ppm |
30-60ppm |
30-60ppm |
5-15ppm |
|
Power功率 |
1.8kw |
2.8kw |
3.4kw |
2.5kw |
|
Dimension设备尺寸 |
1900mm(L) 970mm(W) 1390mm(H) |
2700mm(L) 970mm(W) 1400mm(H) |
3100mm(L) 1010mm(W) 1400mm(H) |
1800mm(L) 1020mm(W) 1300mm(H) |
|
Weight重量 |
700kg |
900kg |
1800kg |
700kg |
Other packages:
FU-BO is your right choice
